Need more control over your point-of-care urinalysis testing process?

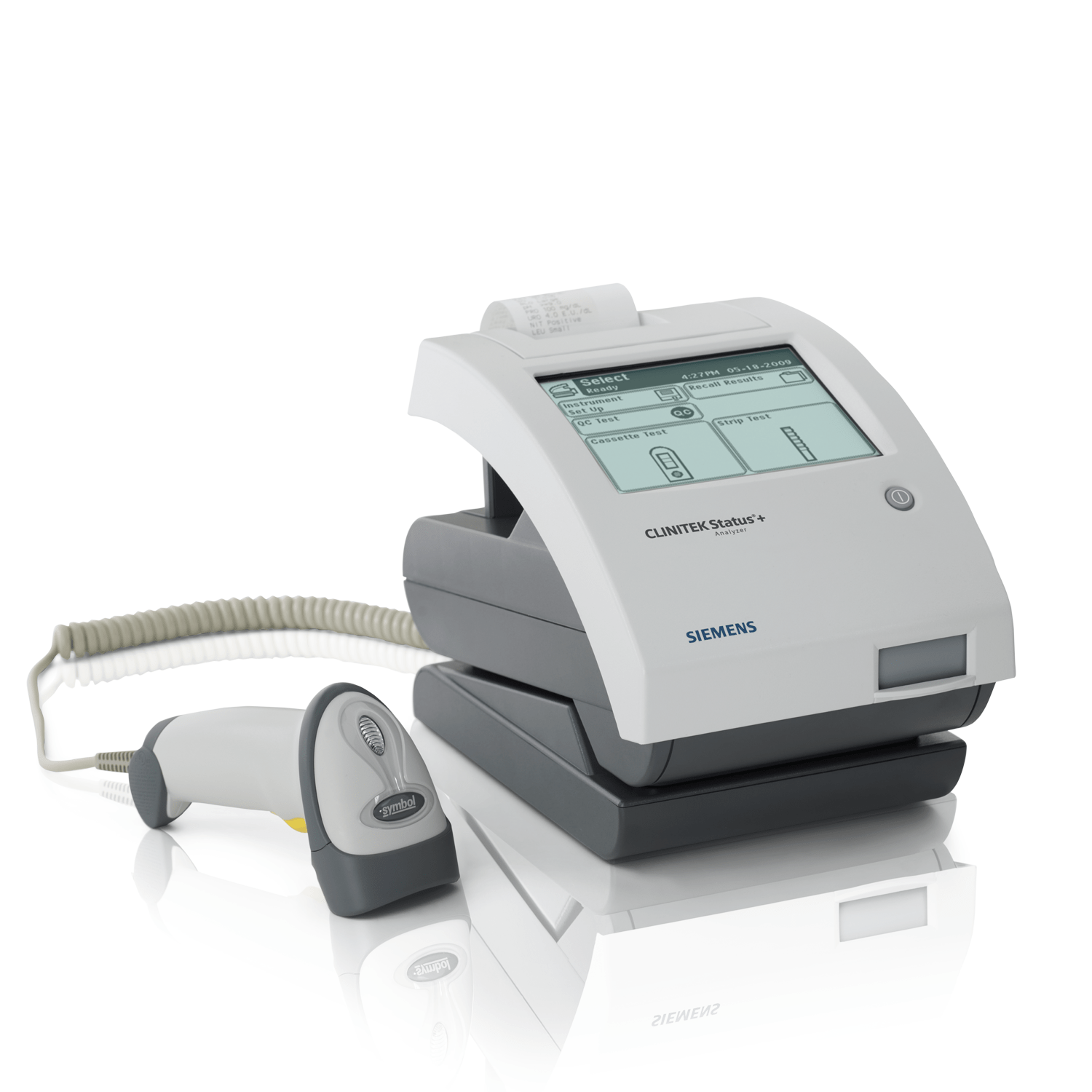

CLINITEK Status® Connect System simplifies wireless or wired connectivity and testing oversight in point-of care urinalysis for improved risk management.
|
Semi-quantitative Tests Measured
|
|
|
Routine urine tests
|
albumin, bilirubin, creatinine, glucose, ketone, leukocytes, nitrite, pH, protein, specific gravity and urobilinogen
|
|
Kidney disease test
|
albumin-to-creatinine ratio
|
|
Pregnancy test
|
Human Chorionic Gonadotropin (hCG)
|
|
General Specifications
|
|
|
Depth
|
27.2 cm
|
|
Width
|
17.1 cm
|
|
Height
|
18.5 cm
|
|
Weight
|
2.3 kg
|
|
Electrical rating
|
100V – 240V AC, 50-60 Hz (with in-line lead)
|
|
Battery operation
|
Not available
|
|
Ambient temperature range
|
18 to 30ºC
|
|
Humidity range
|
18-80% relative humidity, non-condensing
|
|
Compliance
|
UL, CE, EMC
|
|
Calibration
|
automatic, self-calibrating
|
|
Communication Capabilities
|
|
|
Communication protocol
|
HL7, POCT1-A2
|
|

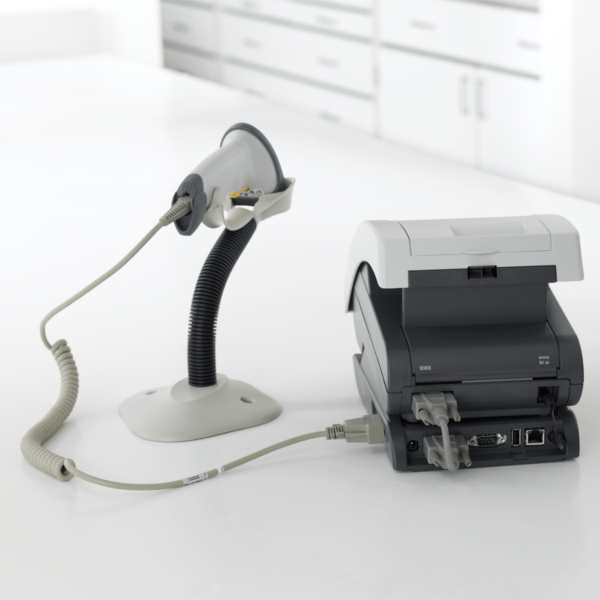

Data transmission options
|
wireless, Ethernet or serial connection
|
|
Interfaces with leading point-of-care
data management solutions* |
|
|
Memory
|
|
|
Patient test results
|
700
|
|
QC test results
|
200
|
|
Operator IDs
|
700
|
|
Quality Control Management Features
|
|
|
QC testing and reporting
|
|
|
QC reminders or mandatory prompt
|
|
|
QC lockout
|
|
|

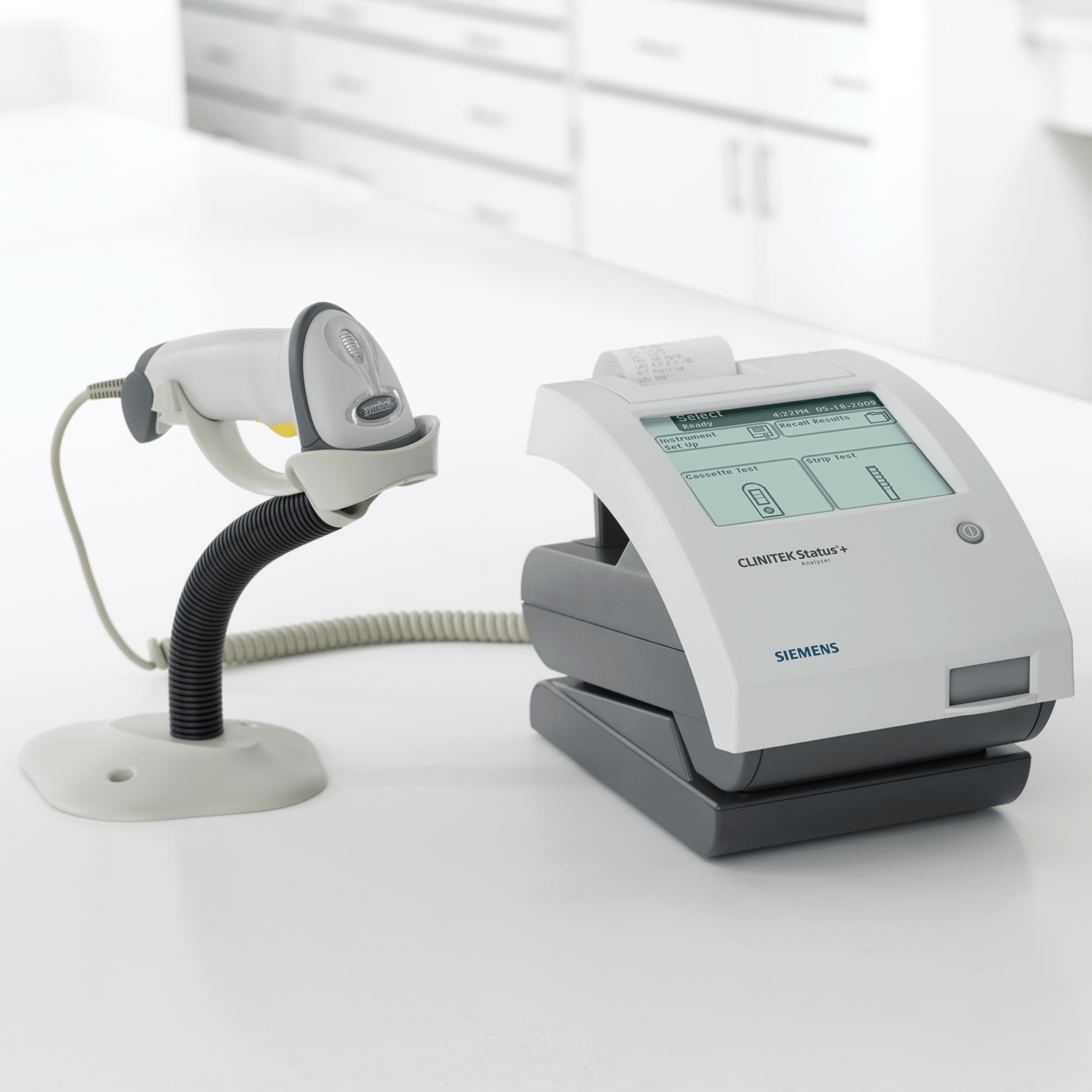

Barcode Data Entry
|
|
|
Patient ID, operator ID and name,
QC control type, lot number, and expiration date |
|
|
Barcode Symbology Supported
|
|
|
Code 93, Code 39 (with and without check digit), Code 128, Coda Bar, Interleaved 2 of 5 (with and without check digit)
|
|
|
Operator Security Features
|
|
|
Define up to 700 operators
|
|
|
Operator lock-out to prevent unauthorized use
|
|
|
Customize access level for each operator for the following functions:
|

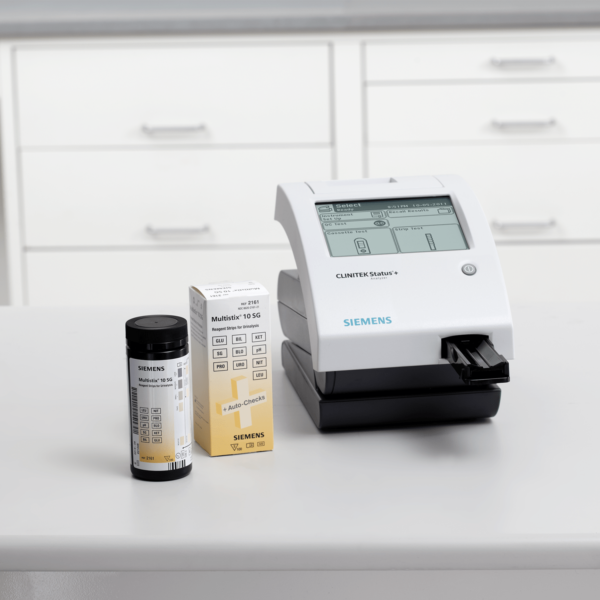

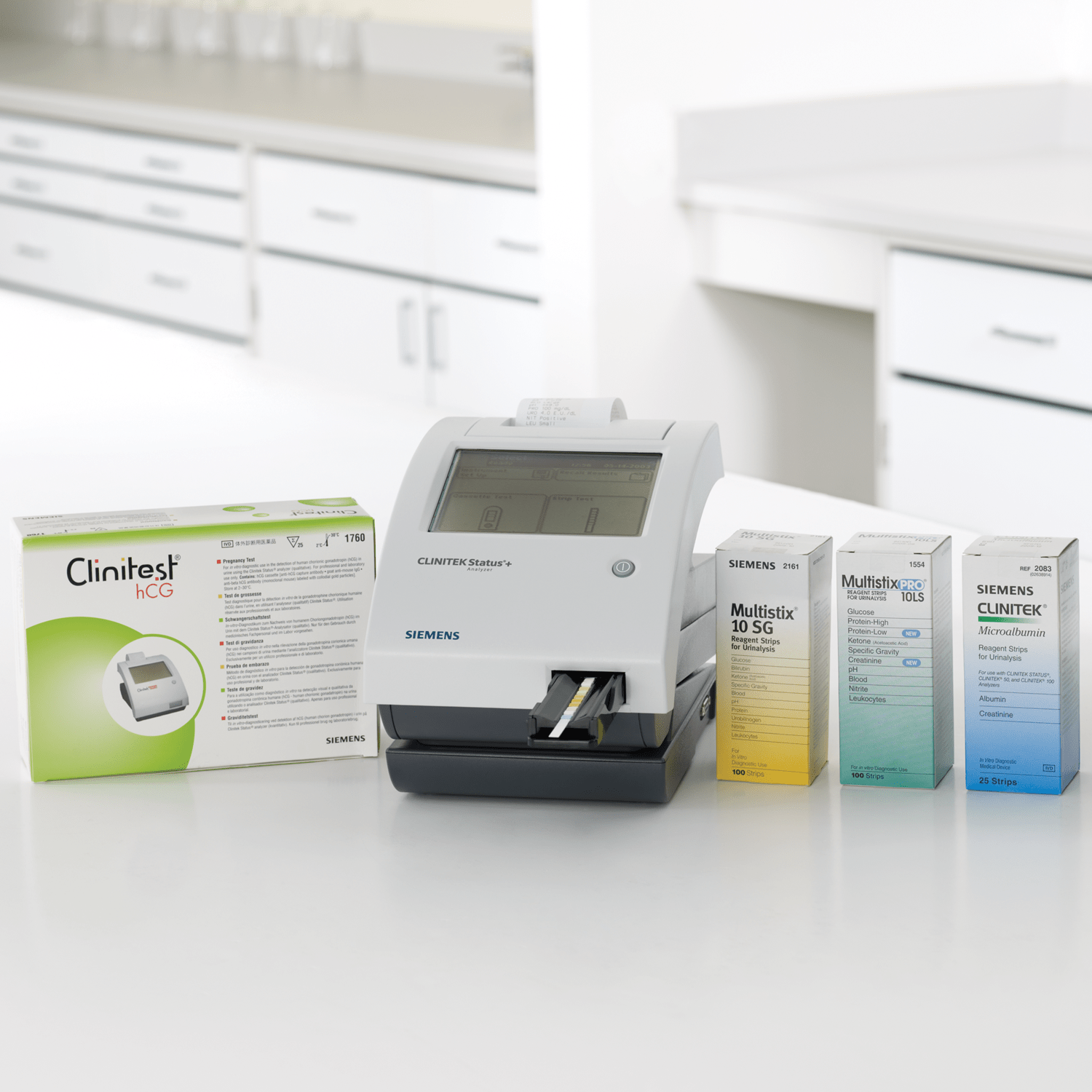

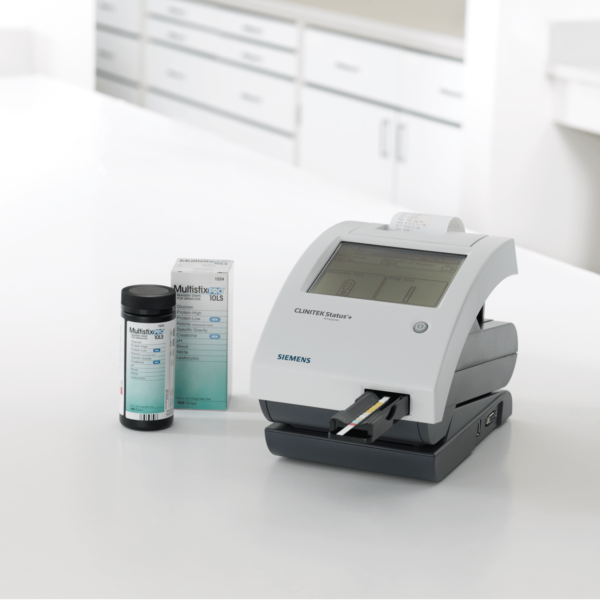

The CLINITEK Status Connect System provides automated reading of the Multistix® family of urinalysis tests:
Service is essential to keep medical equipment operational and safe. Our Nordic service team consists of experienced service technicians stationed across the Nordic countries. Our service technicians are ready to take on your every service need.”

Reliable support system for rehabilitation
The Lode Body Weight Support System (BWSS) is especially developed to support patients that are not able to walk independently. They need support in order to be able to learn how to walk again. The Lode BWSS is the perfect product to enable this. During the training session, the patient weight can be supported accurately up to 80 kg, allowing a broad range of patients to use the system. The compensation weight can easily be adjusted with a remote control. The weight is compensated through a Unique use of spring combinations, which is a breakthrough and provides the most stable compensation system. This system is suitable for treadmills with a maximum walking surface width of 60 cm. It is standard supplied with a harness size M.
The height of the product is suitable for normal rooms (from 2,5 meters). For higher rooms you may consider to order height adjustment parts to enable use by taller patients. This will increase the height with 18 cm.

Robust and reliable treadmill that can be controlled by external devices
Modern designed treadmill specifically designed for cardio-pulmonary exercise testing. This treadmill is standard supplied with a commUnication module and can therefor be easily controlled by all known stress ECG and pulmonary devices in the world. The low step-up height makes the treadmill perfectly suitable for all test subjects in the field of cardiology, rehabilitation and pulmonary function. The emergency stop with magnetic lanyard on the standard front handrail provides additional safety for the user. The Valiant 2 cpet offers a smooth acceleration from 0 km/h and is continuously adjustable in a range of 0,5 – 20 km/h (0.3 – 12 mph). The standard elevation is 0 – 25% and the running surface of this treadmill is 60 x 170 cm. The Valiant cpet is standard supplied without any display.

Worldwide famous ergometer that can be controlled by all known Cardio Pulmonary Exercise devices
Lode’s Corival is one of the most popular ergometers worldwide. The low start-up load of 7 Watt is first-class. The Corival cpet is standard supplied with a commUnication module and can therefore be easily controlled by all known stress ECG and pulmonary devices in the world.
The workload, rpm and time can be readout from the 3,5″ colour display. The Corival cpet has an eddy current electro-magnetic braking mechanism. The biggest advantage of this system is the accuracy which is one of the most important Lode principles. With this ergometer, the stress tests performed are reliable and reproducible.

Valiant 2 rehab XL – Robust and reliable treadmill for rehabilitation in extra large size
Modern designed treadmill specifically designed for rehabilitation. The low step-up height makes the treadmill perfectly suitable for all test subjects in the field of rehabilitation. The emergency stop with magnetic lanyard on the standard front handrail provides additional safety for the user. The Valiant 2 rehab offers a smooth acceleration from 0 km/h and is continuously adjustable in a range of 0,1 – 12 km/h (0.06 – 7.5 mph). The network module provides control within a Lode software network (LEM, LRM or LCRM). Thanks to the unique low design of the cover plate it is possible to place a mirror or camera in front of the treadmill which makes it easier to monitor the gait of the test subject. The Valiant 2 rehab XL has a standard running surface of 60 x 170 cm and 0-25% elevation. The treadmill is supplied with a 7″ control unit with touchscreen for manual control and a bottle holder.
A USB A-B cable only for service purposes will be standard delivered with the product.
To connect LEM, LRM or LCRM you need a special interface cable that can be ordered.
