A unique medical isolation transportation system

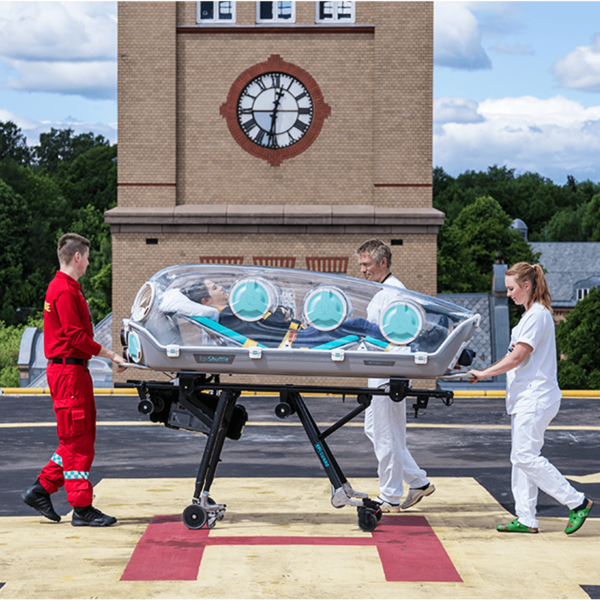

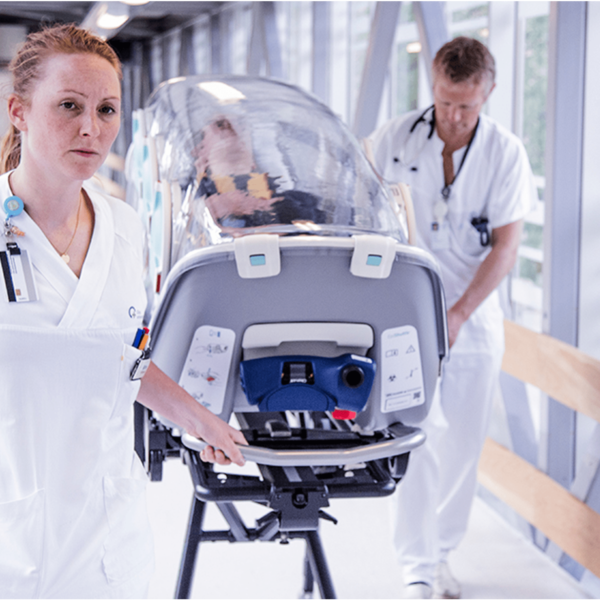

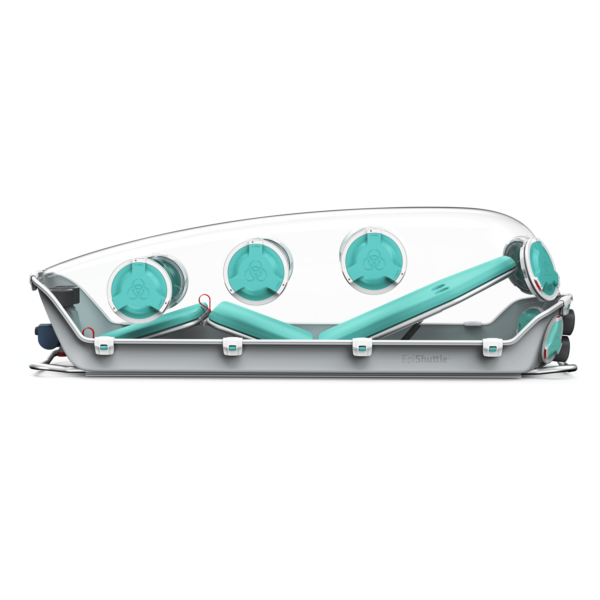

EpiShuttle is a medical isolation and transportation system designed for optimal safety and numerous treatment options during patient loading and transport. The unit is a single-patient isolator made of solvent-resistant materials. EpiShuttle can be carried and is compatible with leading ambulance-stretcher undercarriage EMS systems.
The EpiShuttle is compatible with most mechanical ventilator circuits. Using negative pressure and P3 filter, the isolator provides full environmental protection from particulate cross-contamination of highly infectious diseases. In positive pressure mode, the isolator protects patients from hazardous environmental agents through the use of CBRN filters. The design allows for full intensive care treatment and emergency procedures, such as intubation and insertion of central venous catheters. The EpiShuttle is designed for multiple use, easy communication and optimal patient comfort.
The EpiShuttle has been created by clinicians with many years of experience within the field. Every little detail and function of the device are thoroughly designed and thought through and tested, from patient handling to facilitating advanced medical procedures. This has resulted in a device uniquely designed to meet the needs of the patient, yet specifically the healthcare providers ability to give the absolute best patient care without the risk of contamination. In fact, the EpiShuttle has been designed by users for users.
EMS system compatible
EpiShuttle has an L-Track attachment system that allows for quick and secure attachment to stretchers, ambulances, aircrafts, and helicopters.
ON – ite treatment

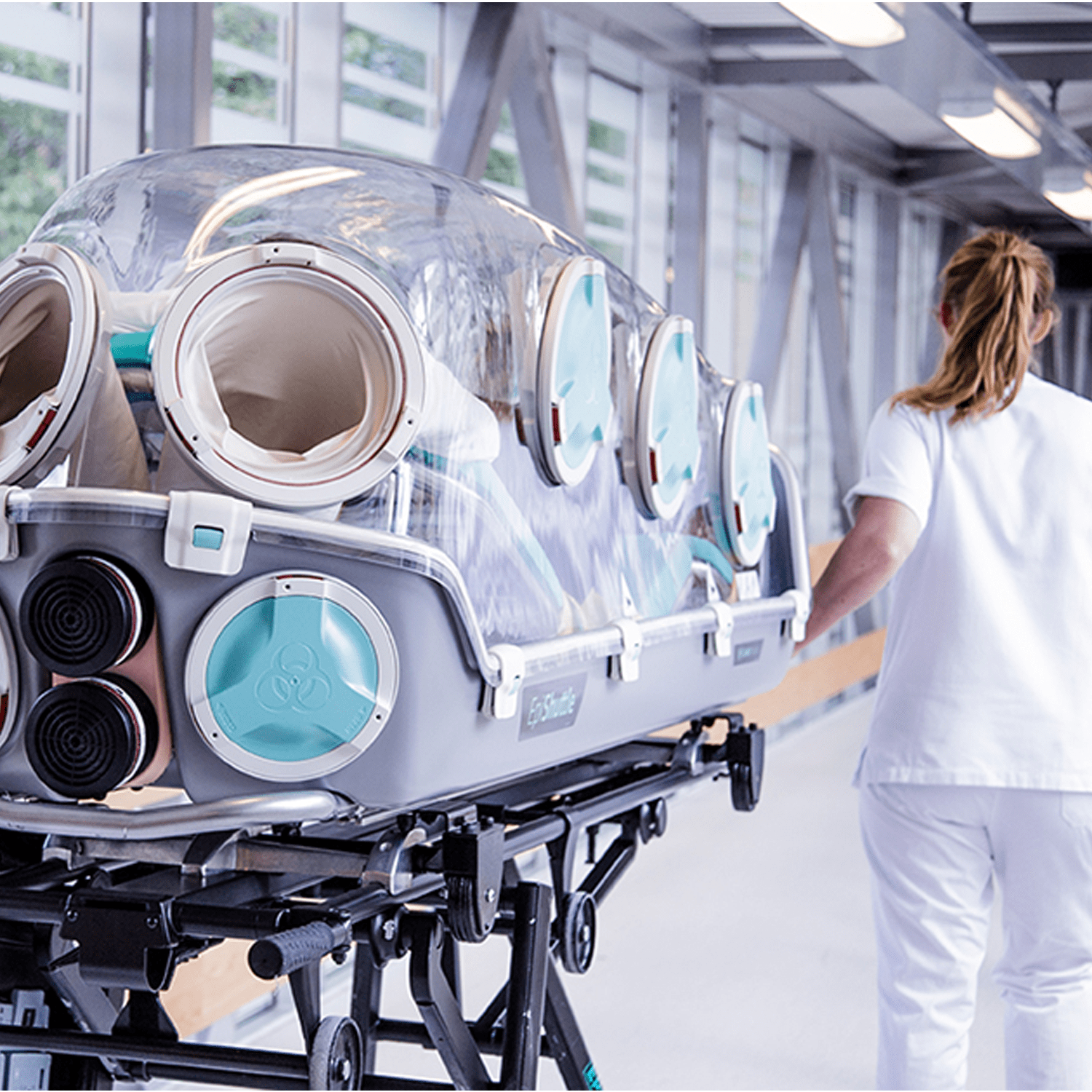

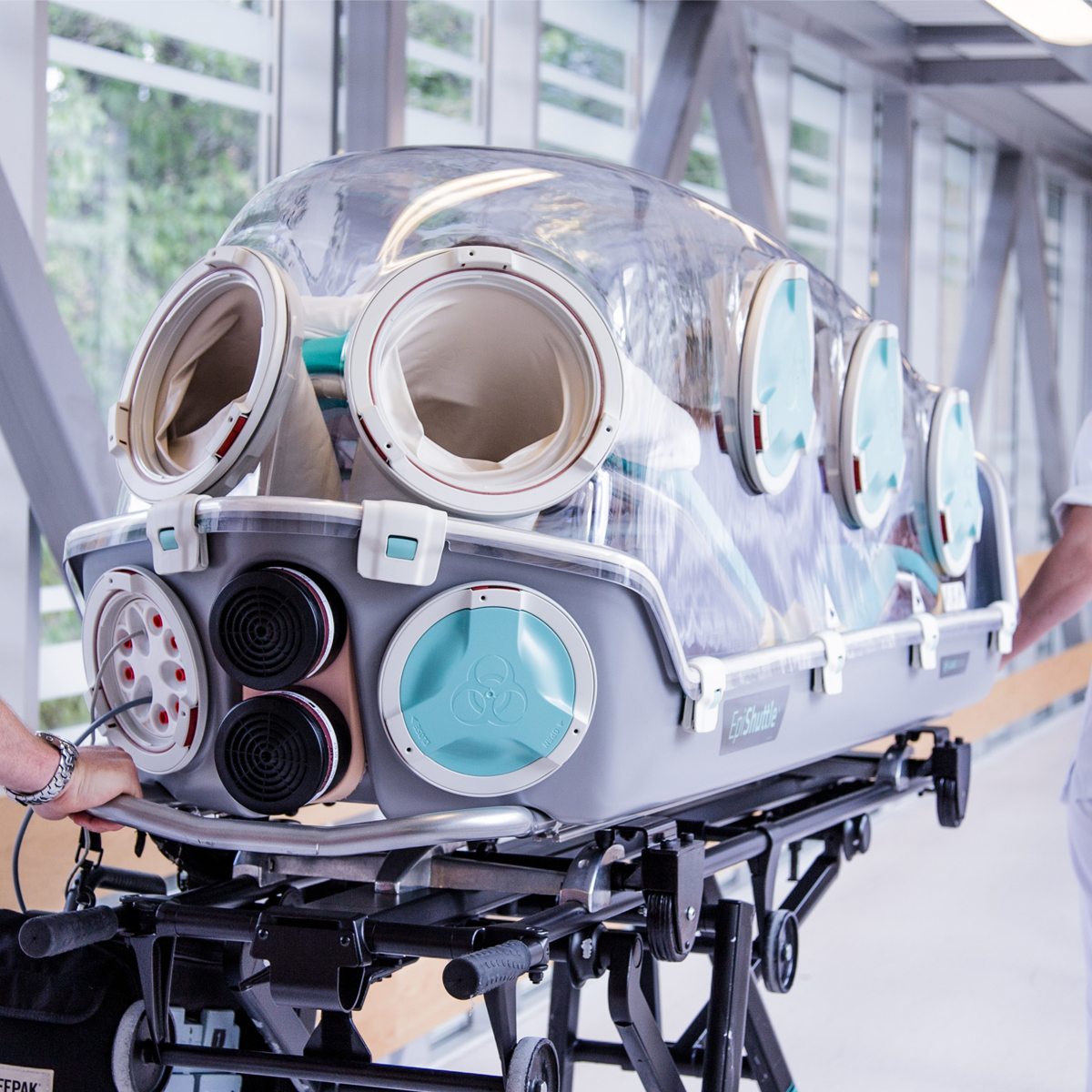

For optimal treatment during transport, the EpiShuttle has eight entry ports. These ports have sealed gloves or other options like sluice port and waste bag that can be changed during use.
Reusable
The device is simple to clean and disinfect for multiple use. The device is easily disassembled and assembled without the use of any tools.
Quick patient loading
Short patient loading time possible due to easy operations and intuitive functions. The hard top is easily secured with EpiShuttle´s unique locking system to obtain airtight connection.
Battery powered
EpiShuttle allows for uninterrupted power for a minimum of 6 hours. The batteries can be replaced during transport, keeping the patient and environment safe from contamination up to 24 hours.
Dual protection system
The pressure modes can be set to either protect the environment from the infected patient, or protect the patient from contaminants in the environmental air. It complies with all levels of transmission based precautions; standard, contact, droplet and/or airborne.
Intensive care
EpiShuttle is equipped with medical ports for connecting IV lines, oxygen lines and monitoring cables, as well as providing mechanical ventilation to the patient. The intensive care system allows the health personnel to monitor, medicate, and give treatment to the patient without direct exposure.
Optimal patient comfort

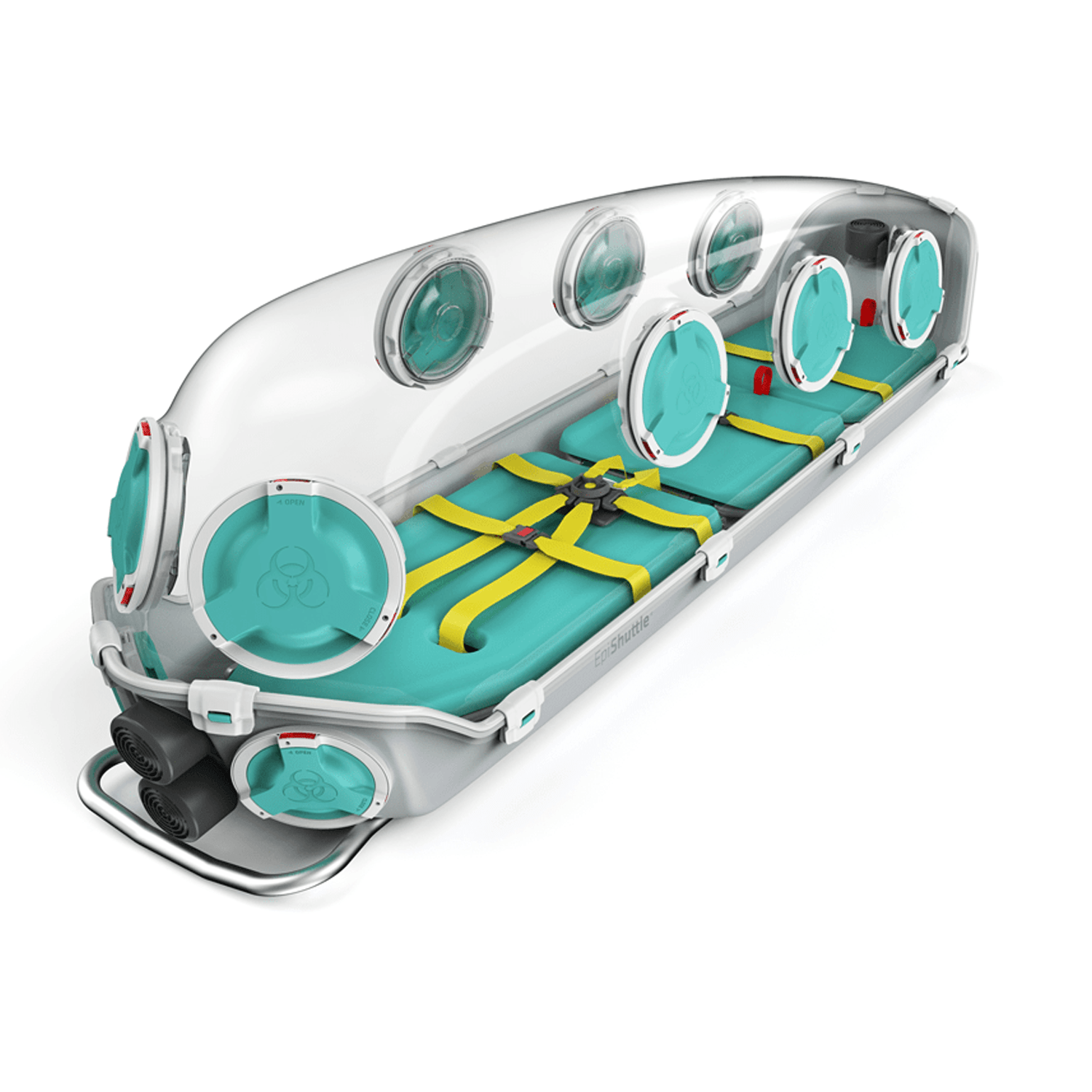

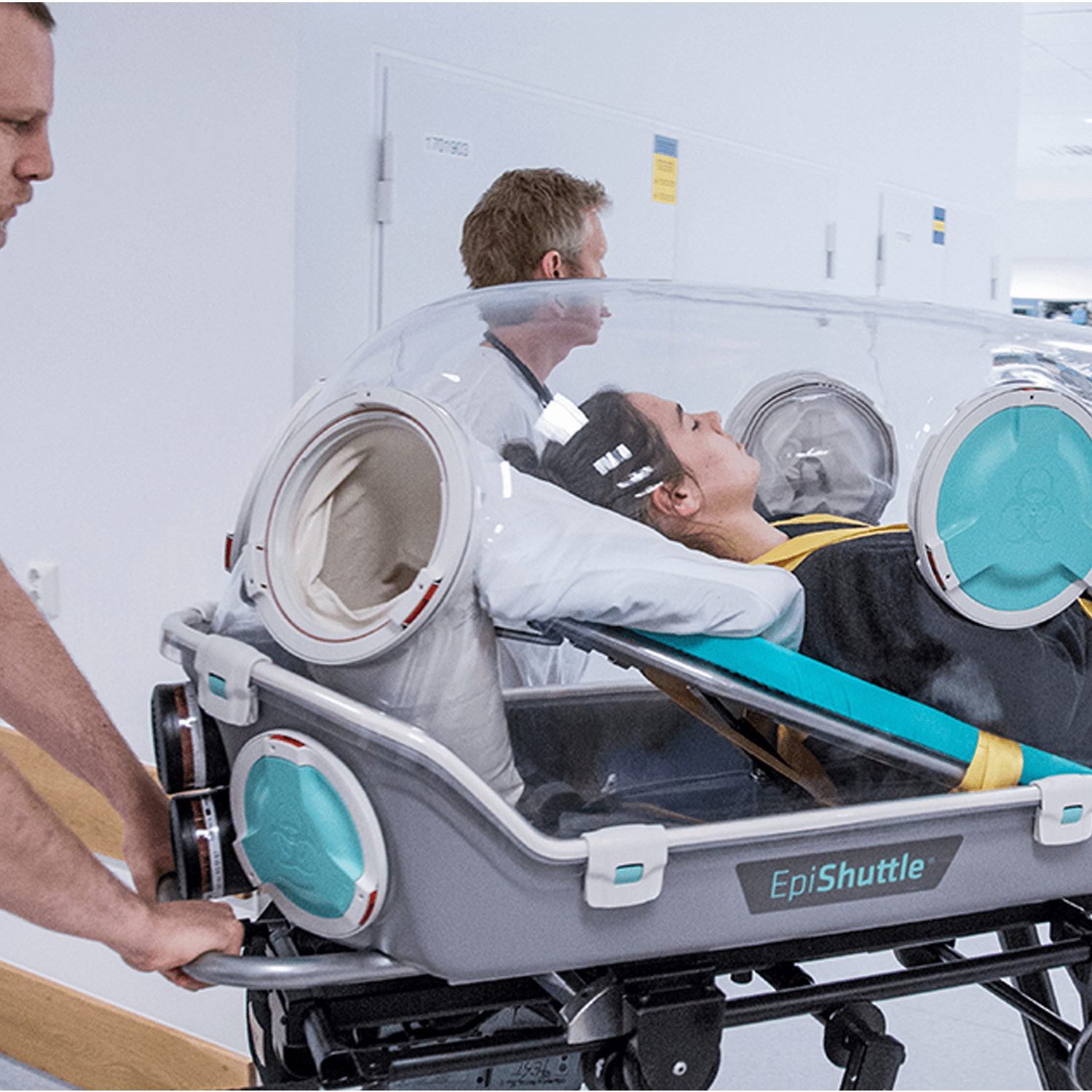

EpiShuttle has been uniquely designed for optimal patient comfort. The integrated bed is adjustable both for knee angle and backrest, allowing for increased comfort for the patient and better conditions for clinical procedures. The visibility through the transparent hardtop allows for better communication between the patient and surroundings.
EpiGuard has tested materials used in the EpiShuttle with several disinfection chemicals.
Disinfectant that are EpiShuttle Compatible:
Disinfectant that is NOT EpiShuttle Compatible is:
EpiGuard have developed and validated two procedures for disinfecting the EpiShuttle with either peracetic acid or hydrogen peroxide vapor. The chemical compatibility matrix may act as a guideline for customers who want to implement their own disinfection procedures with their local hygiene department
Caution: ensure proper removal of chemical residues after decontamination, as these residues deteriorate the materials.
Service is essential to keep medical equipment operational and safe. Our Nordic service team consists of experienced service technicians stationed across the Nordic countries. Our service technicians are ready to take on your every service need.”
Providing asset management of test data
Rigel Med-eBase is Rigel Medical’s flagship software product which provides asset management of test data to and from the Rigel Medical test equipment range. It’s capable of producing advanced results and data reports with an option to store your data on a local or remote database structure.
A local database requires no database server to be installed while a remote database can allow multiple users to access the same data simultaneously. It allows the user to easily manage the test data to and from the Rigel Medical test equipment range. Sort functions and comparison of test results, combined with database functions, will allow the user to upload data for fast re-testing of stored assets.
Robust and reliable treadmill that can be controlled by external devices
Modern designed treadmill specifically designed for cardio-pulmonary exercise testing. This treadmill is standard supplied with a commUnication module and can therefor be easily controlled by all known stress ECG and pulmonary devices in the world. The low step-up height makes the treadmill perfectly suitable for all test subjects in the field of cardiology, rehabilitation and pulmonary function. The emergency stop with magnetic lanyard on the standard front handrail provides additional safety for the user. The Valiant 2 cpet offers a smooth acceleration from 0 km/h and is continuously adjustable in a range of 0,5 – 20 km/h (0.3 – 12 mph). The standard elevation is 0 – 25% and the running surface of this treadmill is 60 x 170 cm. The Valiant cpet is standard supplied without any display.
Reliable respiration monitoring
The SISS BABYCONTROL monitors respiration of babies and infants and can thus provide reliable assistance against «Sudden Infant Death». High reliability, simple operation and convenient size make the SISS BABYCONTROL® a universally applicable instrument for baby monitoring in hospitals or at home.
Being prepared
Still today, “Sudden Infant Death” is an unforeseeable occurrence. 80% of the affected infants are entirely healthy beforehand. Only 20% are from so-called risk groups (former premature births or babies already suffering from life-threatening conditions or with a «Sudden Infant Death» among close relatives). Only a prompt alarm in the event of irregularities provides the chance to apply life-saving measures within the shortest possible time. Such measures should be learned beforehand in special courses.
XL-size sports treadmill with Unique Slat Technology
The Katana sport XL is an extended version of the Katana Treadmill: a modern and reliable treadmill that can be connected to external ECG- and pulmonary devices as well as to a Lode software network (LEM or LCRM).
The Lode Katana sport XL offers smooth acceleration and is continuously adjustable in a range of 0,5 – 30 km/h. With a walking surface of 220 x 70 cm this treadmill is the solution for use in sport medical settings. The treadmill is equipped with a 7″ control Unit with touchscreen, fixed side handrails and 0 – 25% elevation. The treadmill is executed with a special Lode Slat Technology with 106 soft grip covered slats that allows for high speed and a natural walking and running experience. Its Unique bearing technology delivers high speeds at low noise levels while needing low maintenance. The function of this product can be enhanced by using it in combination with our Lode Ergometry Manager software. 934930: 400 V – 3 phases 934931: 200 V – 3 phases
