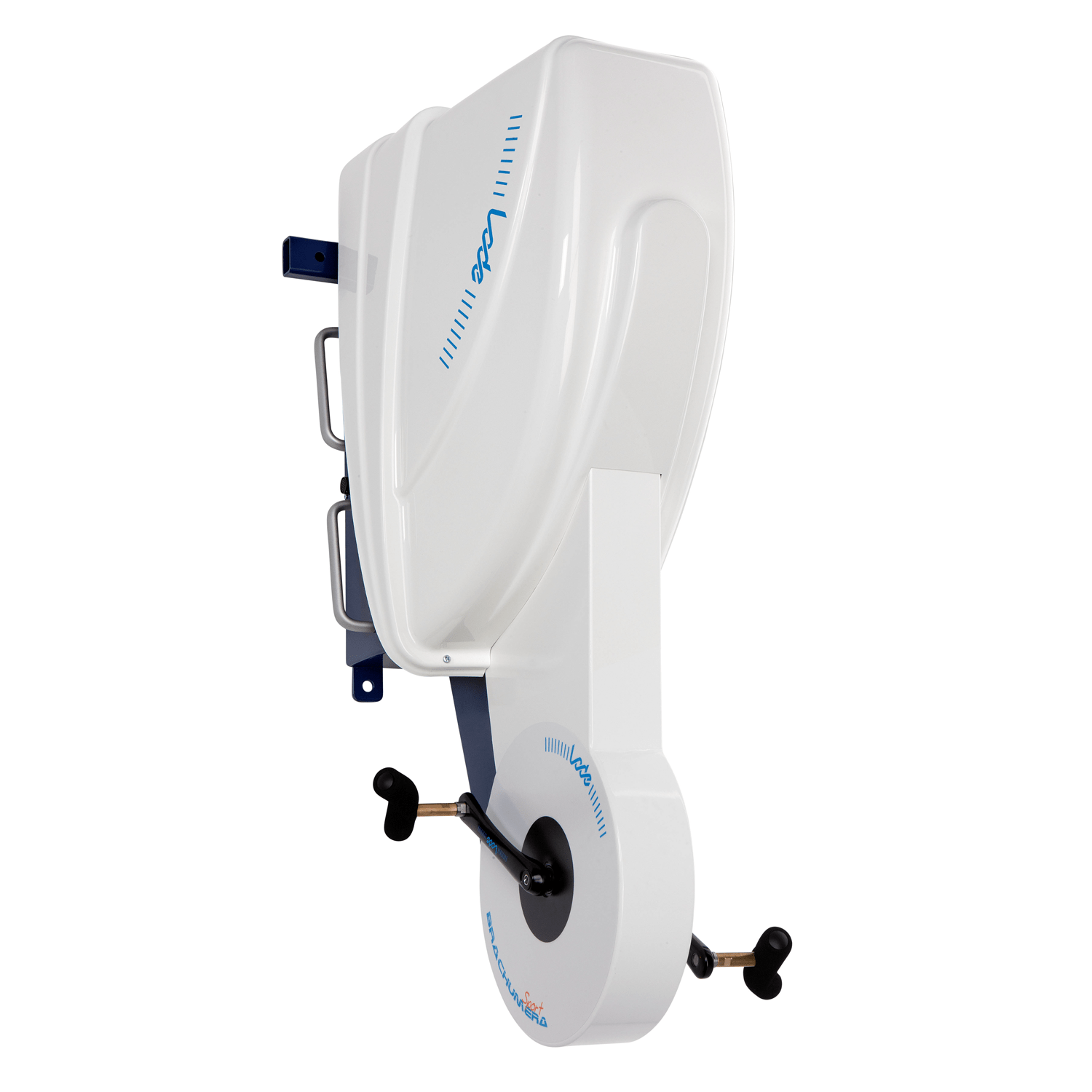

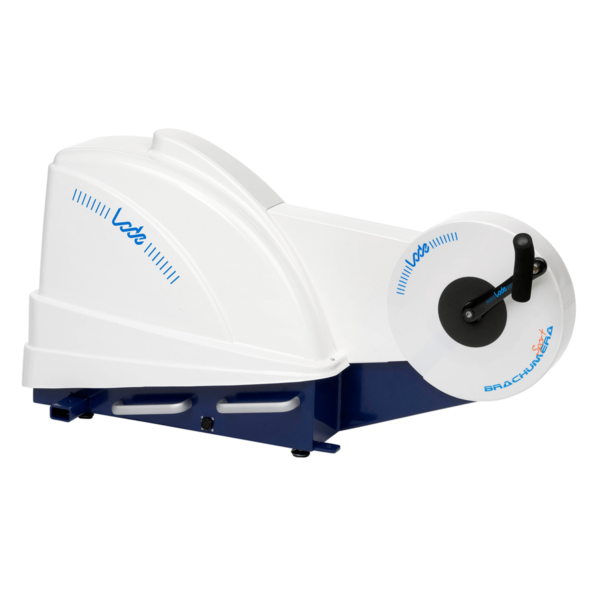

The worlds highest load accurate arm ergometer
The Brachumera sport is a modern and reliable arm ergometer that can be controlled both manually and by external equipment. Brachumera sport is currently used in Olympic and professional sports where the muscles in the arms and shoulders play a mayor role, e.g. kayaking and swimming.
Pedal Force Measurement allows for analysis of force balance and stroke efficiency. The arm ergometer for sports can deliver a load up till 2500 Watt. It can be connected to Lode Ergometry Software for data management, protocol creation and execution.
Extreme workload range of 8 – 2500 watt. Makes this ergometer extremely suitable for sports medicine and testing the strongest athletes in the world on their anaerobic power or isokinetic capacity.
Left and right independent measurements. The PFM is not only the summation of left and right, but independent measurements. Differences between the left and right pedal movement, before and after surgery or at different workload can be detected.
Special Analysis and Polar graphs are specifically designed for pedal force measurement
The LEM software with PFM module is standard included
Accuracy of PFM during the total revolution is obtained by the placement of highly specific strain gauges in the crank axis making it possible to measure the pedal force every 2 degrees during each revolution during the exercise test.
Lode ergometers with Pedal Force Measurement come standard with the Lode Ergometry Manager – Pedal Force Measurement software module. The combination of software and ergometer results in a unique application for sport-medical stress testing, rehabilitation and research. The Pedal Force Measurement module adds the following features to the Lode Ergometry Manager: – Continuous registration of the forces exerted on the left and right crank; – Specific Pedal Force Measurement visualisations; – Specific Pedal Force Measurement reports and analysis: numeric data such as peak values, averages, absolute maximum, angle, total efficiency, rpm and left/right ratio are registered and saved. Export to statistical programs is possible with the optional LEM Expansion Module Export; – Protocols for pedal force measurement can be programmed based on time intervals (with a maximum of 60 minutes), enabling a continuous registration of the pedal force; – On-line visualizations of the forces and Torque on the left and/or right crank during the test; The software offers the possibility to define “area’s of interest” (AOI) and to analyze these separately.
With the measured values the operator can advise the test subject better about: – Injuries; – Efficiency of the bicycle movement; – Body posture on the bicycle; – Left-right comparison; – Evaluating rehabilitation process; – Adjustments to the racing bike. With only one test you get a clear insight into the physiologic and biomechanic possibilities of your client, which enables you to give better advice and support.
Service is essential to keep medical equipment operational and safe. Our Nordic service team consists of experienced service technicians stationed across the Nordic countries. Our service technicians are ready to take on your every service need.”
Infusion pump analyzer that can double your test capacity
Rigel Multi-Flo infusion pump analyzer is a portable instrument to accurately and swiftly verify the performance of all infusion devices.
The Rigel Multi-Flo infusion pump analyser offers ease of use, high accuracy readings and productivity improvements right from the start.
A cost effective, easy to use patient simulator
The PatSim 200 from Rigel was designed to make every patient simulation quicker. Unlike other Patient Simulators, the PatSim uses a home and recall function to easily move between tests and store your most used sequences, no more clicking and scrolling through ‘tree style’ hierarchy to perform each test. Some of the most unique features include:
Multifunctional robust and reliable treadmill
Ultra large treadmill with 300×200 cm belt surface for various applications. By choosing accessories and options the treadmill can be configured to your specific application.
The available configuration is very complete:
The functionality of the Lode’s Valiant Ultra 300 treadmill can be enhanced considerably by using it with the Lode Ergometry Manager Software (#955900).
Valiant Ultra 250 – Multifunctional robust and reliable treadmill
Ultra large treadmill for various applications. By choosing accessories and options the treadmill can be configured to your specific application. The available configuration is as follows:
The functionality of this treadmill can be enhanced considerably by using it with the Lode Ergometry Manager Software (#955900).
