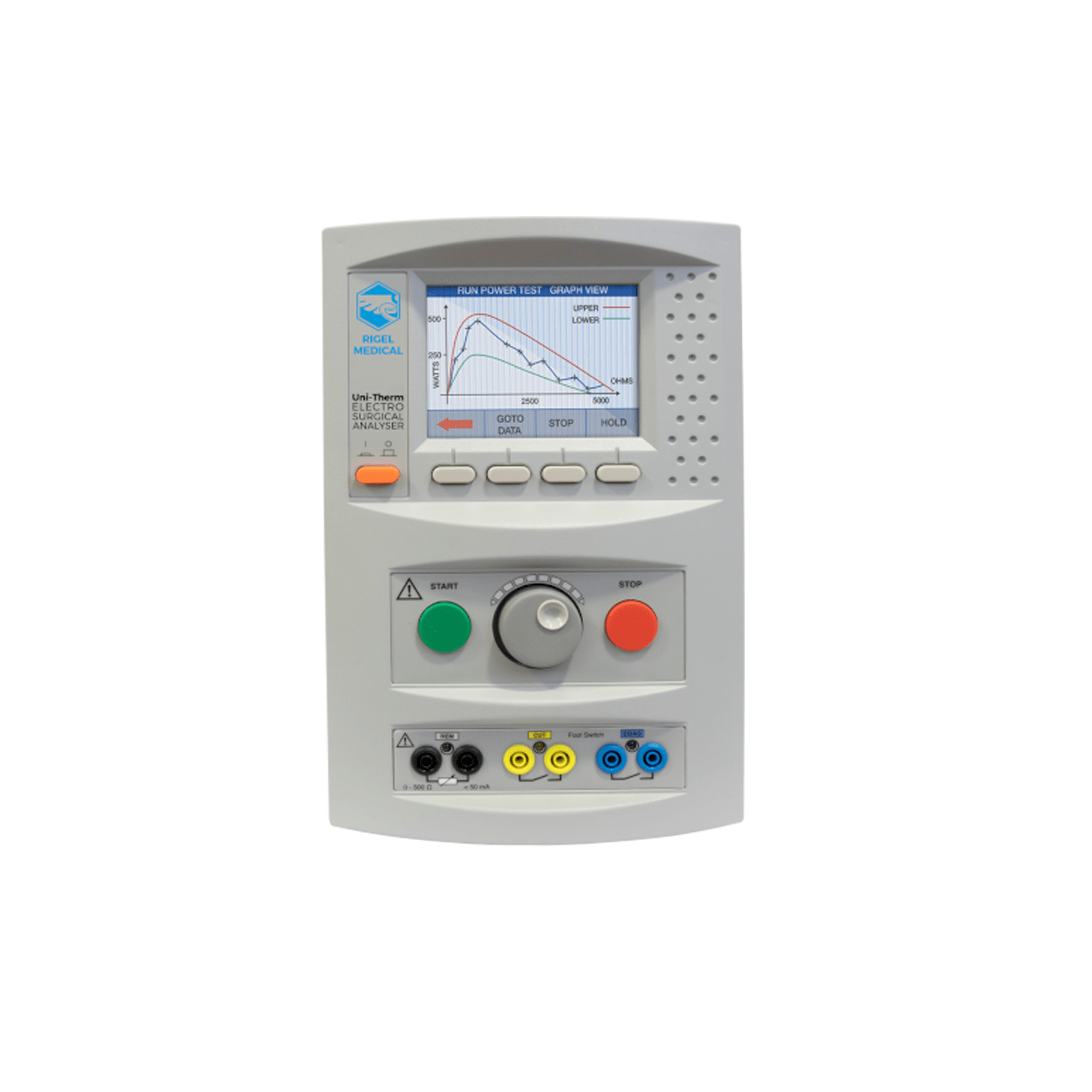

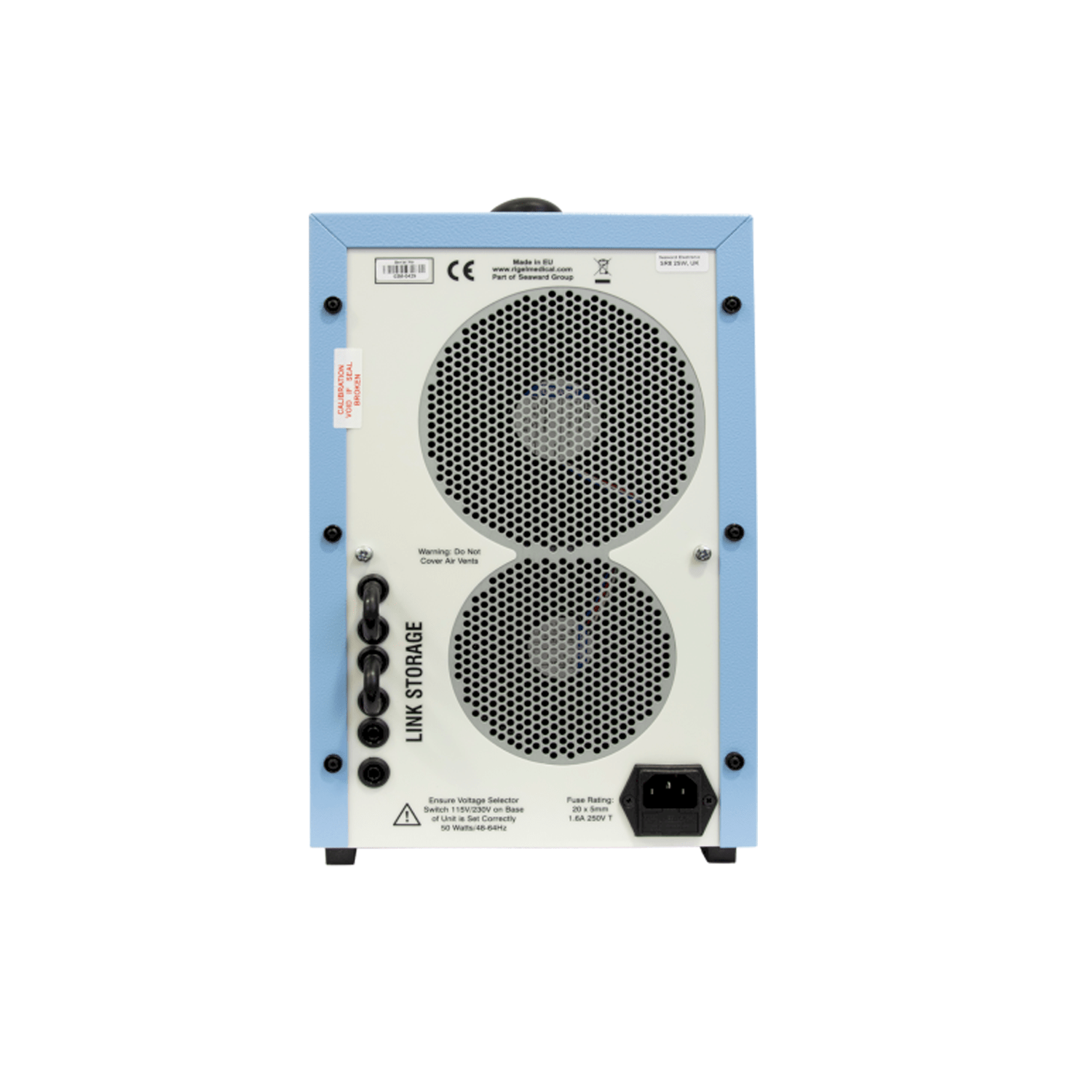

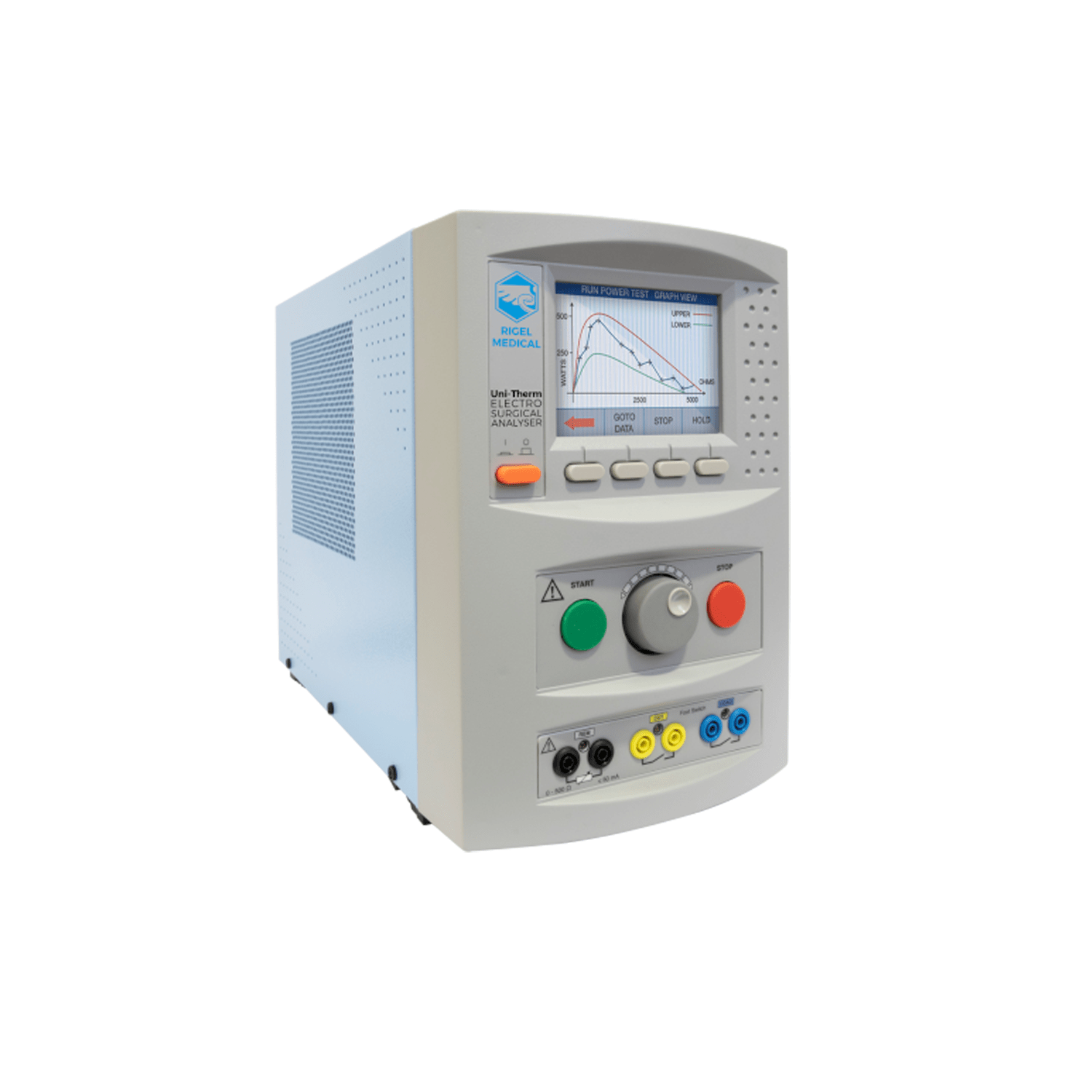

High Current Electrosurgical Analyzer
The high-performance Rigel Uni-Therm electrosurgical analyzer accurately measures the performance of electrosurgical generators including high frequency leakage, high current, power distribution and patient return plate alarm testing.
Compliant with IEC 60601-2-2, the Uni-Therm electrosurgical analyzer is capable of verifying and calibrating all major electrosurgical generators whilst guiding the user through all test procedures automatically and most of all safe.
The compact and small footprint Rigel Uni-Therm automates all ESU related performance tests.
A unique high power low inductance load bank enables performance testing up to 8 ampere RMS with a duty cycle of up to 100% making the analyzer an extremely versatile test instrument for calibrating and performance testing of conventional and high-power electrosurgical generators. The load bank allows testing in a range of 0-5115Ω with a resolution of over 1000 steps providing high detailed power profiles. The Rigel Uni-Therm also advocates safe working practise by providing all necessary resistors within a single enclosure.
Return electrode monitoring capability can be performed both manually as well as automatic. A high accuracy potentiometer provides testing within 1Ω resolution, ideal when testing alarm settings based on impedance variance.
Product features include onboard memory, test automation, comprehensive data management facilities and a wide range of in-built resistors, while a large full colour screen displays easy-to-follow, step-by-step instructions to ensure the correct connection to the device under test.
Bluetooth-enabled technology allows wireless connectivity to PCs and other equipment for the fast and convenient downloading of test data and the uploading of the electrosurgical device’s power curves and the manufacturer’s test specific programmes. Output waveforms can be examined through a built-in scope output which allows for easy confirmation of the desired waveform shape.
The Uni-Therm high performance electrosurgical analyzer forms part of a comprehensive range of high-performance specialist biomedical test equipment supplied by Rigel Medical. Contact Timik or visit our webpages for more information.
Service is essential to keep medical equipment operational and safe. Our Nordic service team consists of experienced service technicians stationed across the Nordic countries. Our service technicians are ready to take on your every service need.”
A cost effective, easy to use patient simulator
The PatSim 200 from Rigel was designed to make every patient simulation quicker. Unlike other Patient Simulators, the PatSim uses a home and recall function to easily move between tests and store your most used sequences, no more clicking and scrolling through ‘tree style’ hierarchy to perform each test. Some of the most unique features include:
Valiant 2 rehab – Robust and reliable treadmill for rehabilitation
Modern designed treadmill specifically designed for rehabilitation. The low step-up height makes the treadmill perfectly suitable for all test subjects in the field of rehabilitation. The emergency stop with magnetic lanyard on the standard front handrail provides additional safety for the user. The Valiant 2 rehab offers a smooth acceleration from 0 km/h and is continuously adjustable in a range of 0,1 – 12 km/h (0.06 – 7.5 mph). The included network module provides control within a Lode software network (LEM, LRM or LCRM). Thanks to the unique low design of the cover plate it is possible to place a mirror or camera in front of the treadmill which makes it easier to monitor the gait of the test subject. The Valiant 2 rehab has a standard running surface of 50 x 150 cm and 0-25% elevation. The treadmill is equipped with a 7″ control unit with Touchscreen for manual control and a bottle holder.
A USB A-B cable only for service purposes will be standard delivered with the product.
To connect LEM, LRM or LCRM you need a special interface cable that can be ordered.
Valiant Ultra 250 – Multifunctional robust and reliable treadmill
Ultra large treadmill for various applications. By choosing accessories and options the treadmill can be configured to your specific application. The available configuration is as follows:
The functionality of this treadmill can be enhanced considerably by using it with the Lode Ergometry Manager Software (#955900).
Valiant 2 rehab XL – Robust and reliable treadmill for rehabilitation in extra large size
Modern designed treadmill specifically designed for rehabilitation. The low step-up height makes the treadmill perfectly suitable for all test subjects in the field of rehabilitation. The emergency stop with magnetic lanyard on the standard front handrail provides additional safety for the user. The Valiant 2 rehab offers a smooth acceleration from 0 km/h and is continuously adjustable in a range of 0,1 – 12 km/h (0.06 – 7.5 mph). The network module provides control within a Lode software network (LEM, LRM or LCRM). Thanks to the unique low design of the cover plate it is possible to place a mirror or camera in front of the treadmill which makes it easier to monitor the gait of the test subject. The Valiant 2 rehab XL has a standard running surface of 60 x 170 cm and 0-25% elevation. The treadmill is supplied with a 7″ control unit with touchscreen for manual control and a bottle holder.
A USB A-B cable only for service purposes will be standard delivered with the product.
To connect LEM, LRM or LCRM you need a special interface cable that can be ordered.
