Vyntus™ BODY Plethysmograph
People come in all shapes and sizes, so we designed Vyntus BODY to accommodate the most patients without increasing the cabin footprint. Many enhancements were incorporated to make Vyntus BODY accessible and user friendly for both patients and technicians.
Vyntus BODY employs much of the same breakthrough technology found in the Vyntus ONE, but with a redesigned breathing circuit and our new Ultrasonic Sensor Technology.
In addition, Vyntus BODY is enhanced with additional innovation such as digital pressure compensation, which helps to reduce environmental influences and improves measurement accuracy.
Flexible Telescoping Arm extends 25″ outside the cabin, delivering exceptional maneuverability to your patient’s unique position.

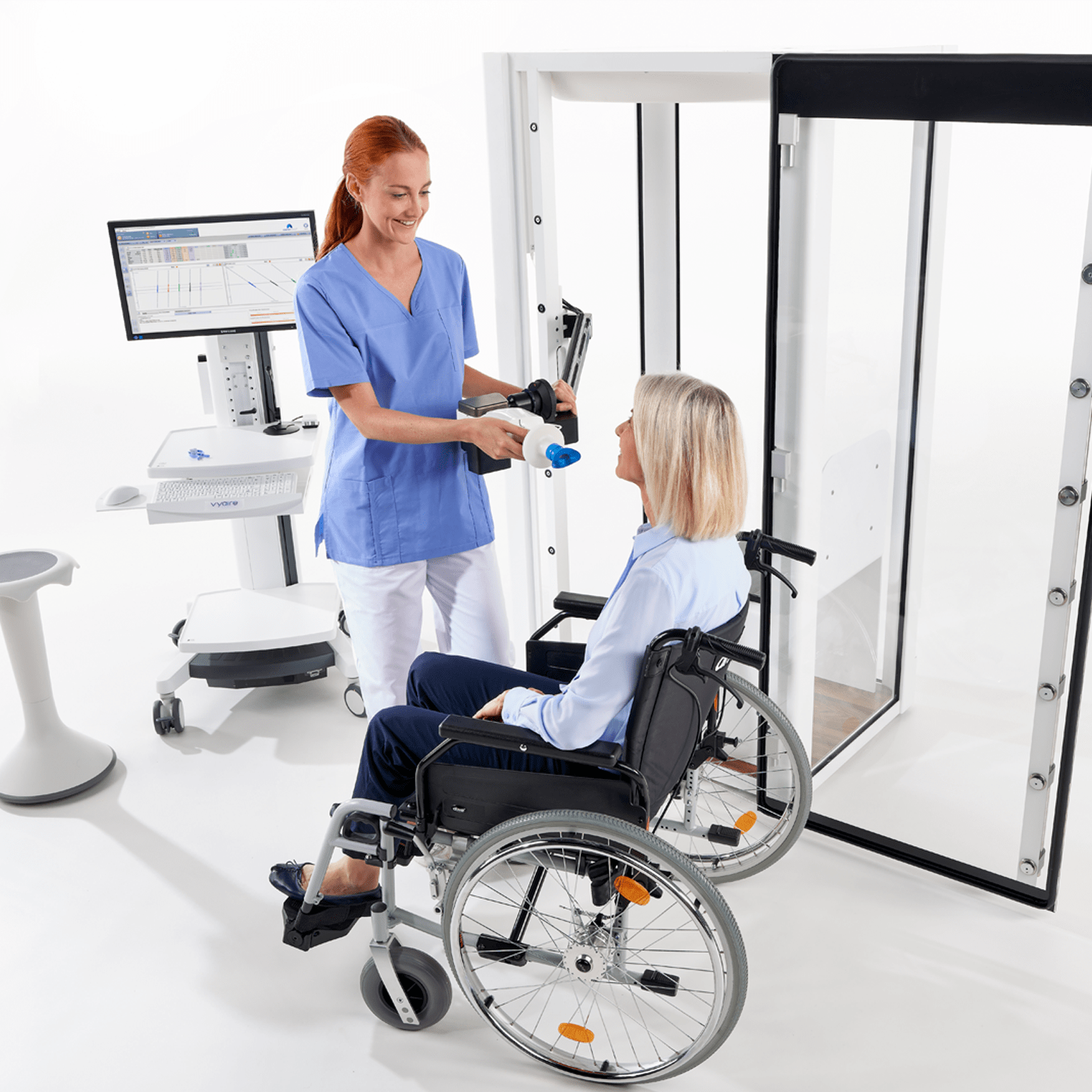

Vyntus BODY readily accommodates wheelchair patients or others who are unable to enter the cabin. This flexibility makes it easy for the technician. The Telescoping Arm requires little maneuvering effort. It stays right where you place it with no tool or locking mechanisms required.
Patients must feel at ease for any technology to perform at its best. So, to help patients feel less anxious and more comfortable, we re-imagined everything from materials to ergonomics.

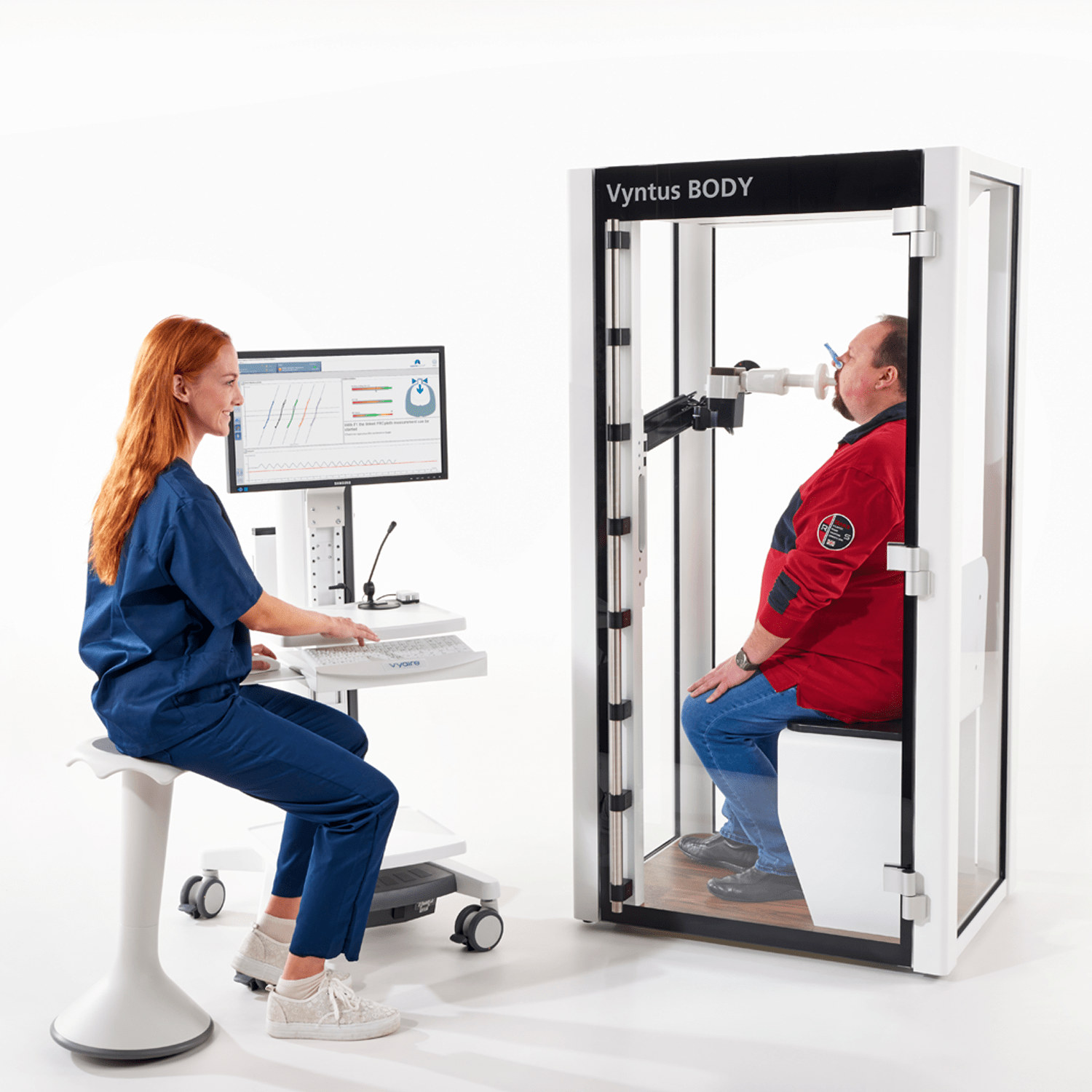

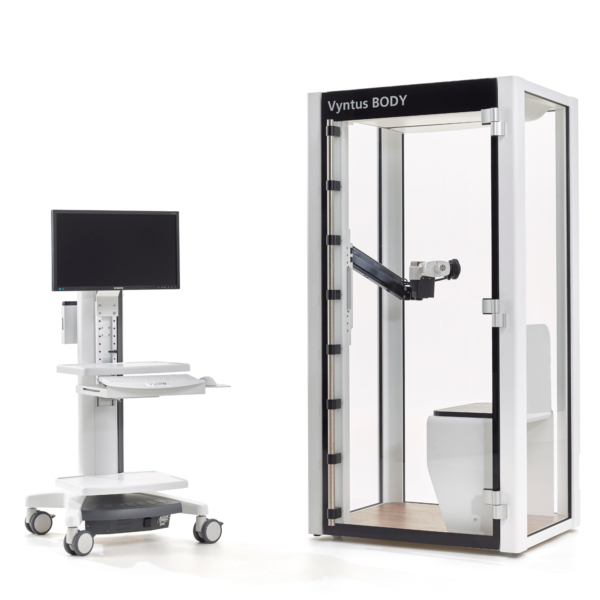

Vyntus BODY offers a spacious plethysmograph (1,110 L) and is equipped with a reinforced bench supporting up to 551 lbs. The all-glass cabin and glowing LED status lights help to create a welcoming environment for most patients.
To make entering and exiting as easy as possible, Vyntus BODY offers a less-than-3-inch step-in clearance and a prominent, stable grab bar. Vyntus BODY’s many features help technicians create a confident and successful testing event.
We re-engineered every facet of our breathing circuit and our box-specific technology to bring improved ease-of-use and accuracy to Pulmonary Function Testing.
Examples of this include the Vyntus Ultrasonic Sensor which is factory calibrated, requiring only simple verification. Additional features, such as Dynamic Flow Correction and Double Shot Technology, help eliminate drift and obtain high levels or precision and accuracy. The flow path valve uses a simple, precise, magnetically-controlled shutter free of balloons.
The Vyntus BODY box itself employs Digital Pressure Compensation which monitors environmental fluctuations in real-time, providing a cleaner signal and more precision.
Maintenance and hygiene are not the most productive or exciting parts of a clinicians day but are critically important for patient safety and diagnostic excellence. We’ve spent a lot of time minimizing what our Vyntus systems require to keep you focused on your patients.
• Smartly designed hardware does not utilize balloons or complicated valves. Just a few robust parts, making disassembly and reassembly a snap.
• Components tolerate manual or automated cleaning and disinfection processes. The ultrasonic sensor is waterproof and dishwasher safe up to 140 F.
• Tool Free O2 cell notifies you when a replacement is needed and lasts typically 2 years. When it needs changing, it is easy to do with tool free access.
• MicroGard II filters offer validated filtering efficiency without compromising system performance. With MicroGard II in use, hygiene routines take less time, since cleaning and disinfection is required only every 3 months.
Service is essential to keep medical equipment operational and safe. Our Nordic service team consists of experienced service technicians stationed across the Nordic countries. Our service technicians are ready to take on your every service need.”
An entry-level electrical safety analyzer for medical devices
The Rigel SafeTest 60 is a robust, reliable and dedicated medical safety analyzer. It is ideal for testing high volumes of medical and laboratory equipment that does not require patient lead testing, such as beds, hoists, infusion pumps, CPAP’s and centrifuges etc.
With a large colour display and a colour-coded user interface, it’s easy to select the required tests with a single key press, whilst a fast step-through of the test routine makes the testing process speedy and dependable.
Robust and reliable treadmill that can be controlled by external devices
Modern designed treadmill specifically designed for cardio-pulmonary exercise testing. This treadmill is standard supplied with a commUnication module and can therefor be easily controlled by all known stress ECG and pulmonary devices in the world. The low step-up height makes the treadmill perfectly suitable for all test subjects in the field of cardiology, rehabilitation and pulmonary function. The emergency stop with magnetic lanyard on the standard front handrail provides additional safety for the user. The Valiant 2 cpet offers a smooth acceleration from 0 km/h and is continuously adjustable in a range of 0,5 – 20 km/h (0.3 – 12 mph). The standard elevation is 0 – 25% and the running surface of this treadmill is 60 x 170 cm. The Valiant cpet is standard supplied without any display.
Robust and reliable treadmill for rehabilitation
Modern designed treadmill specifically designed for rehabilitation. The low step-up height makes the treadmill perfectly suitable for all test subjects in the field of rehabilitation. The emergency stop with magnetic lanyard on the standard front handrail provides additional safety for the user. The Valiant 2 rehab offers a smooth acceleration from 0 km/h and is continuously adjustable in a range of 0,1 – 20 km/h. The network module provides control within a Lode software network (LEM, LRM or LCRM). Thanks to the unique low design of the cover plate it is possible to place a mirror or camera in front of the treadmill which makes it easier to monitor the gait of the test subject. The Valiant 2 rehab XXL has a standard running surface of 250 x 120 cm and 0-15% elevation. The treadmill is supplied with a 7″ control unit with touchscreen for manual control and a bottle holder.
A USB A-B cable only for service purposes will be standard delivered with the product.
To connect LEM, LRM or LCRM you need a special interface cable that can be ordered under part number 930930.
Modern designed treadmill specifically designed for cardio-pulmonary exercise testing. This treadmill is standard supplied with a commUnication module and can therefor be easily controlled by all known stress ECG and pulmonary devices in the world. The low step-up height makes the treadmill perfectly suitable for all test subjects in the field of cardiology and pulmonary function. The emergency stop with magnetic lanyard on the standard front handrail provides additional safety for the user. The Valiant 2 cpet offers a smooth acceleration from 0 km/h and is continuously adjustable in a range of 0,5 – 20 km/h (0.3 – 12 mph). The standard elevation is 0-25% and the running surface is 50 x 150 cm. The Valiant cpet is standard supplied without any display.
